Njords Ark Designers Guide – Indoor Dining Chairs

Designer’s Guide

Indoor dining chairs set the rhythm of a restaurant, lounge, private dining room, or cruise venue. A strong chair specification balances guest comfort, table clearance, staff handling, cleaning, upholstery durability, and the visual identity of the interior.

Category reference

Detail examples to review

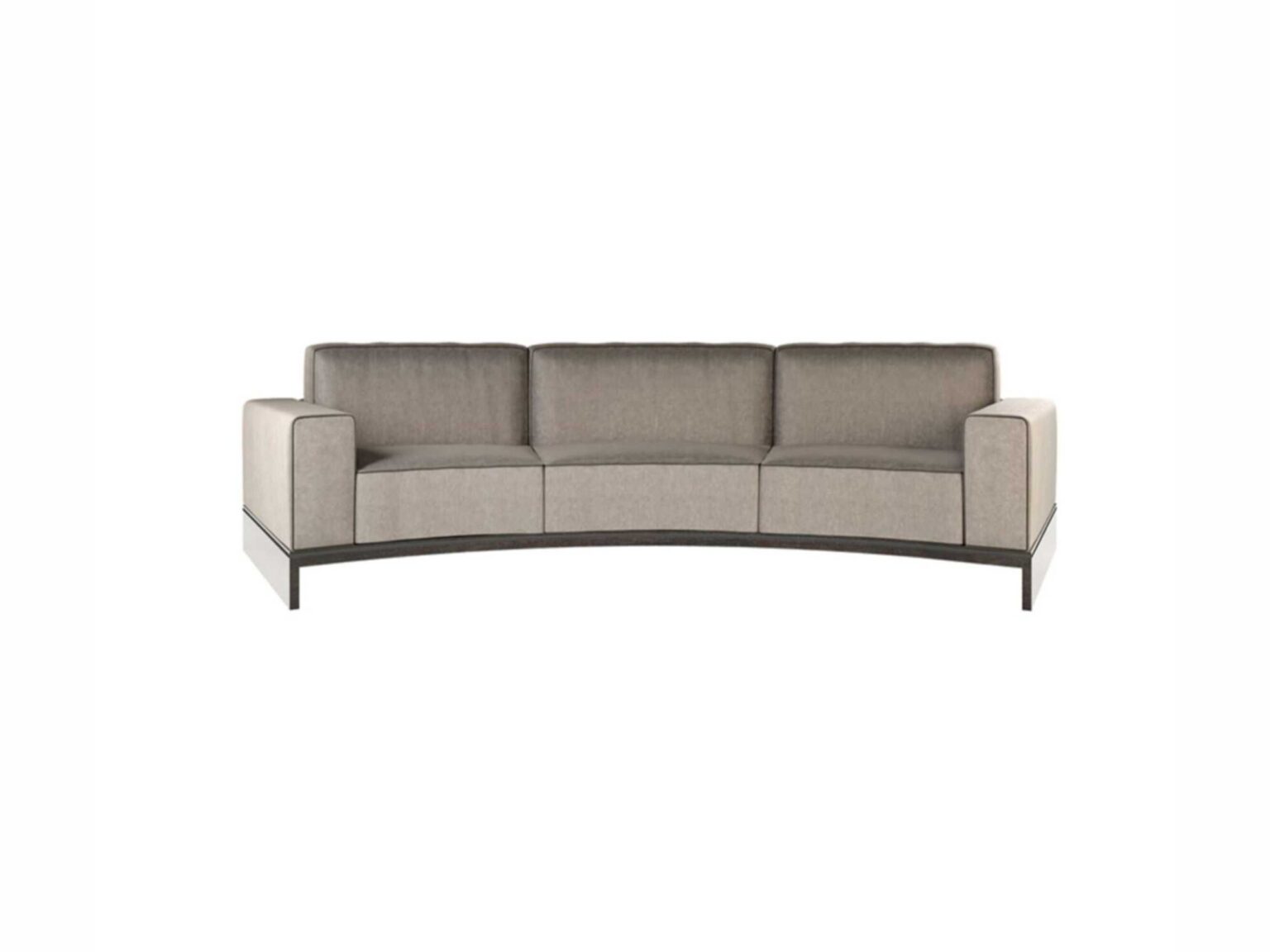

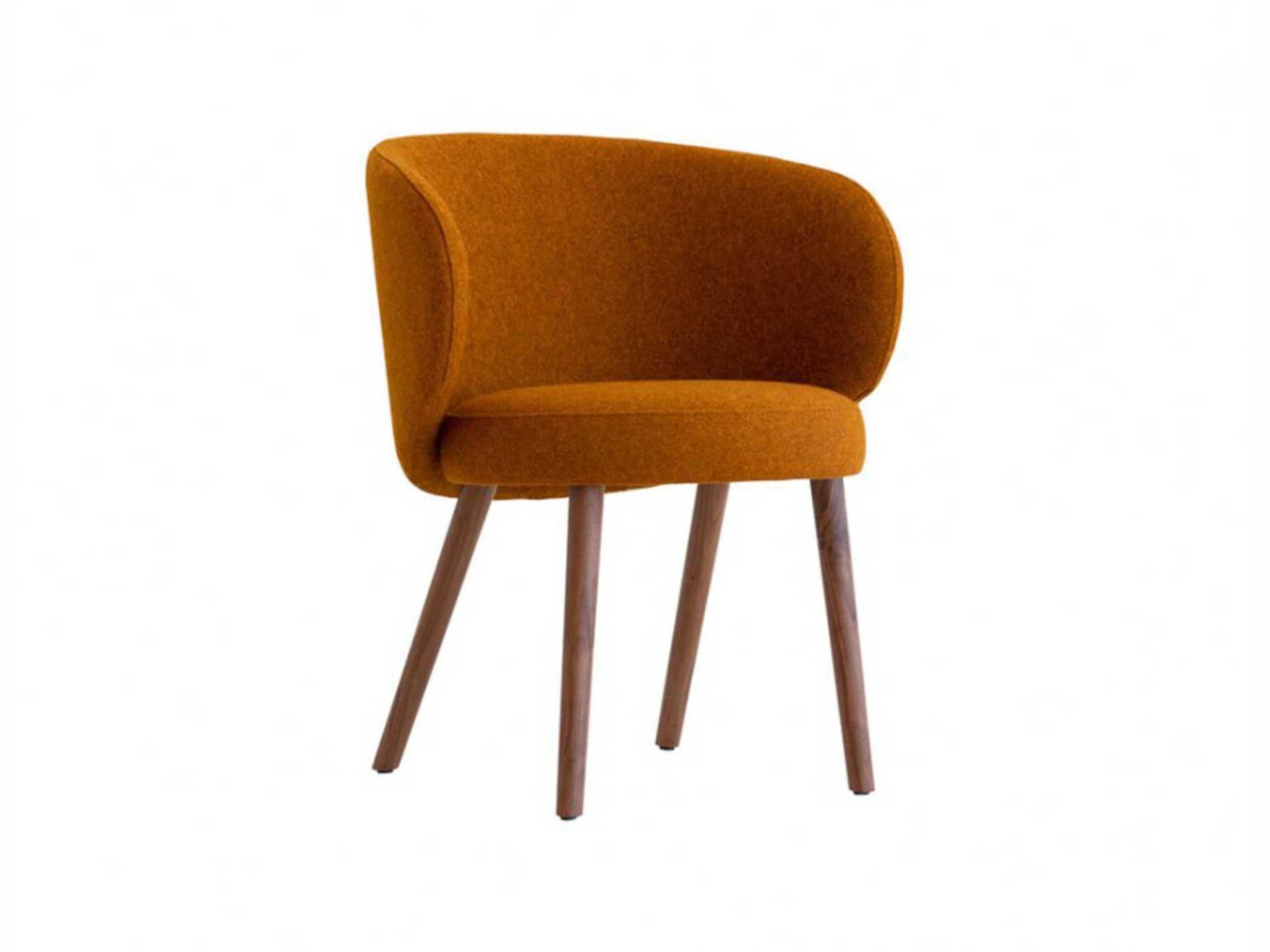

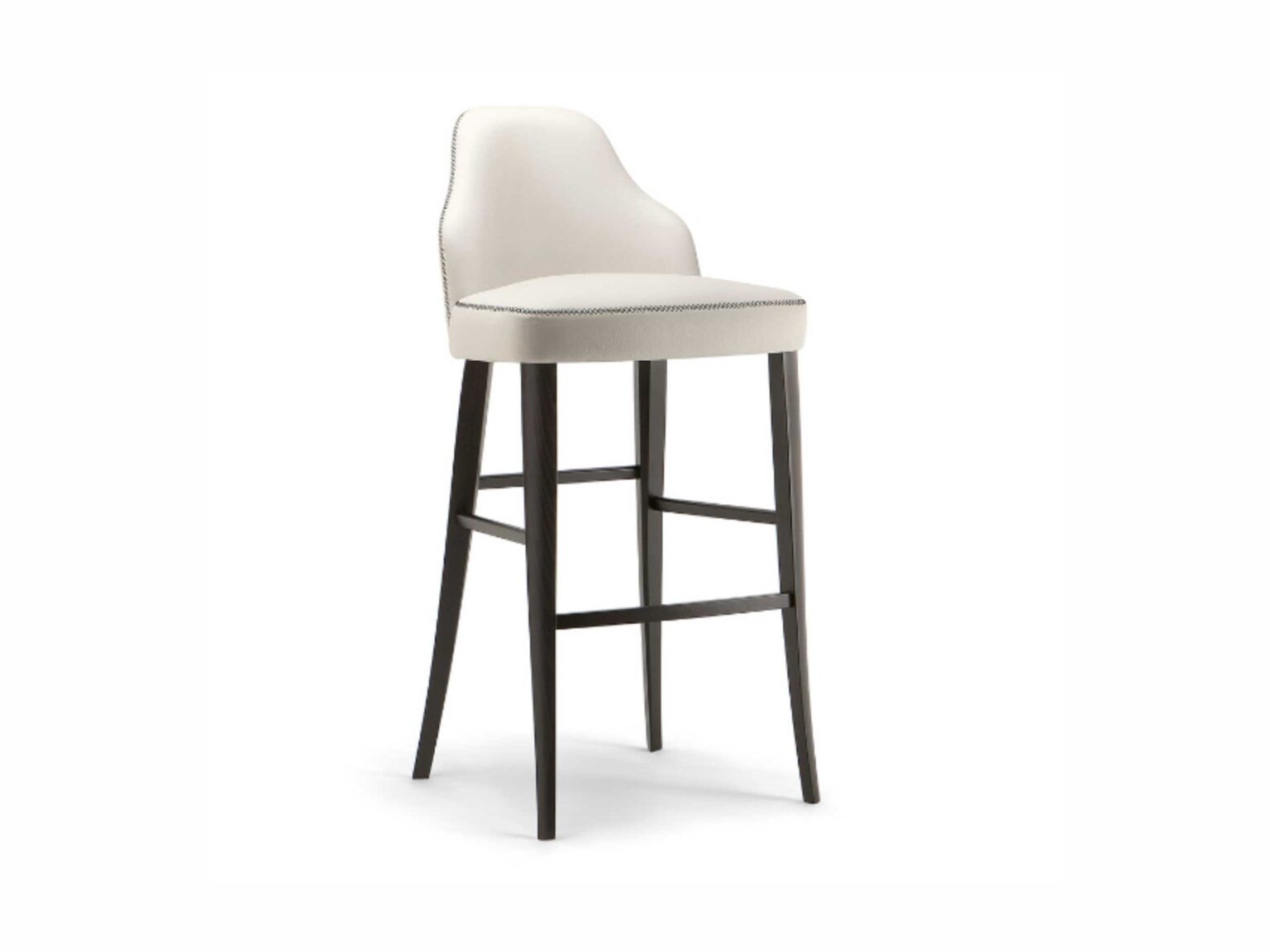

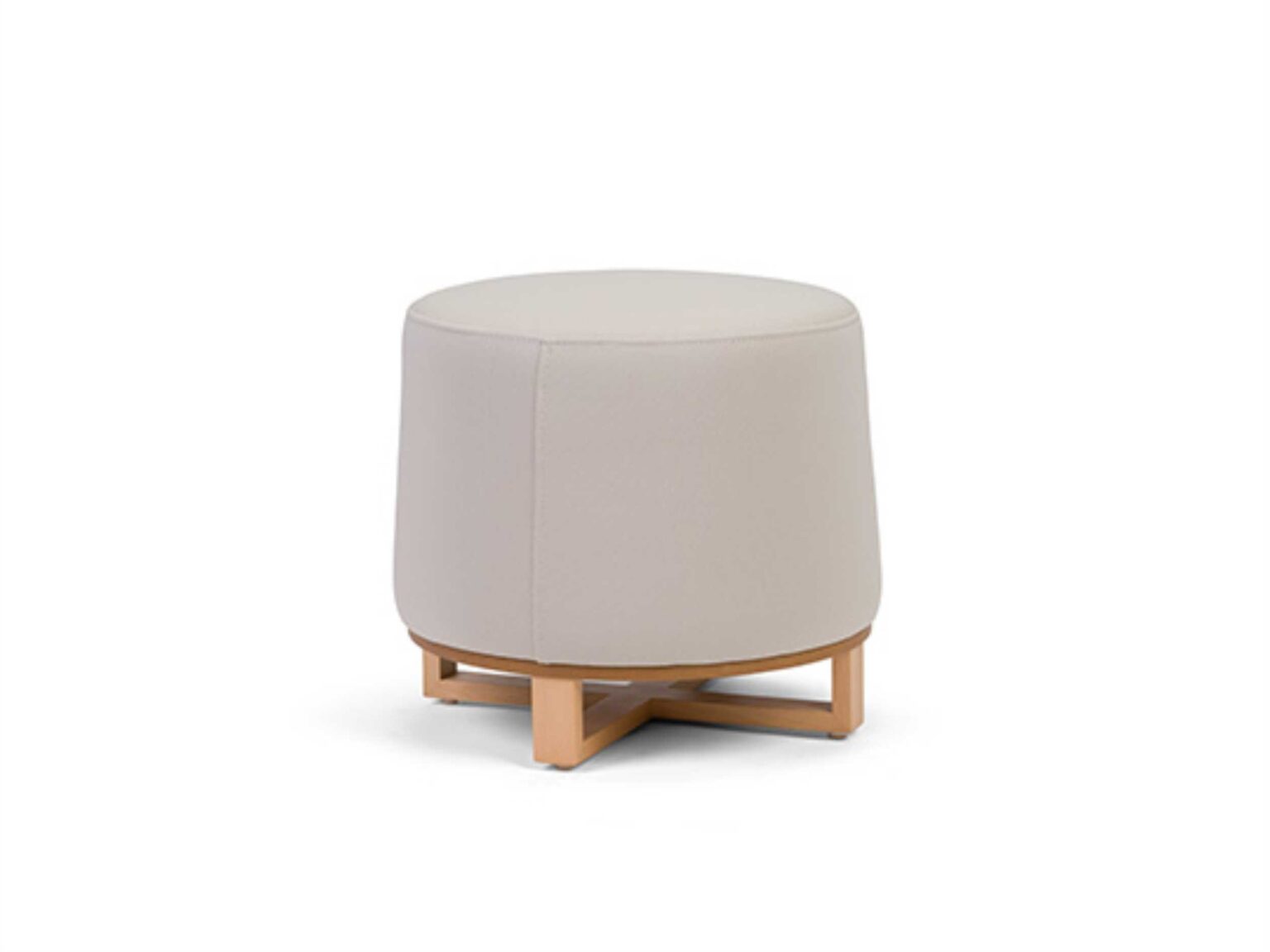

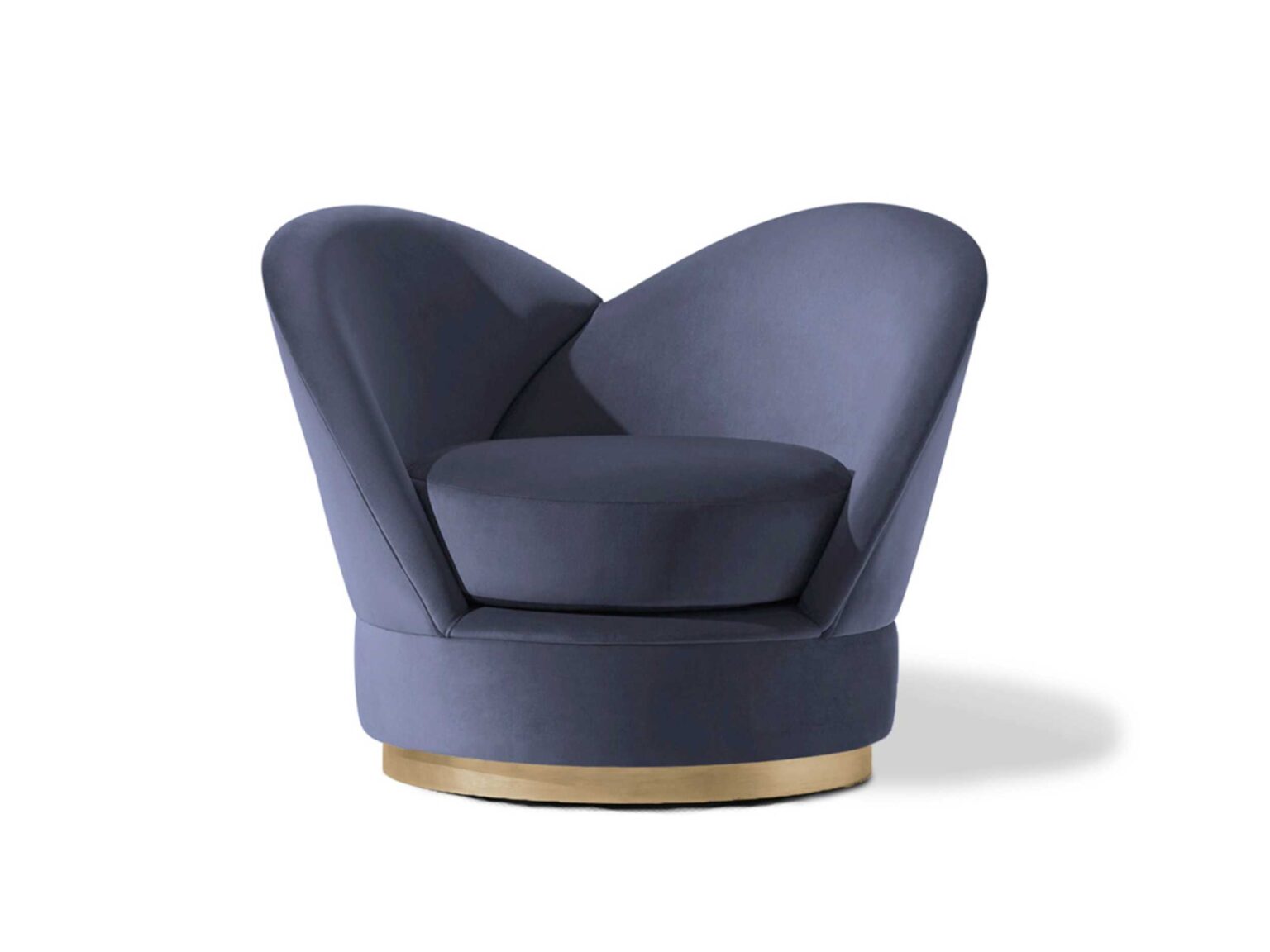

Use the photos as prompts for stitch type, seam direction, tufting, panel breaks, piping, edge protection, and wear-zone placement.

1. Quick Specification Targets

2. Choose the Right Dining Chair Type

Select the dining chair type according to dwell time, service model, and table geometry.

• Side chair for tighter layouts and higher seating counts.
• Armchair for premium dining, lounges, suites, and captain-table settings.
• Fully upholstered chair for comfort and acoustic softness.
• Timber frame chair for warmth and lighter visual weight.
• Metal frame chair for slim profiles and high durability.
• Stackable chair where storage and flexible layouts matter.

3. Comfort, Proportion, and Use Case

Dining comfort depends on small relationships between seat, back, arm, and table.

• Check the chair against the actual table apron and overhang.
• Use a waterfall or softened seat front for longer meals.
• Confirm back support without forcing the guest away from the table.
• Keep chair weight manageable for staff movement.
• Mock up armchairs before finalizing table spacing.

4. Construction and Material Strategy

The frame and upholstery should be specified as one system, not as separate aesthetic choices.

• Solid hardwood, bent plywood, powder coated steel, or mixed-material frames.
• High-resilience foam and fiber wrap for upholstered seats.
• Contract fabric, leather, or vinyl selected for cleaning and abrasion.
• Reinforced rear legs and back joints.
• Floor-specific glides for carpet, timber, tile, or marine flooring.

5. Durability and Compliance Questions

For cruise, hospitality, and other heavy-use projects, specify the product as a maintained asset. Ask what must be documented before samples are approved, because the final material package and construction are what matter.

• Upholstery abrasion target: 50,000+ Martindale for high-use public areas where upholstery is used.
• Confirm flame performance, material declarations, and owner documentation requirements before final sample approval.
• Specify cleanable surfaces compatible with the actual housekeeping chemicals and frequency.
• Use replaceable glides, feet, covers, or wear components wherever repeated service is expected.
• Review mockups under project lighting so color, texture, height, and proportion are approved together.

Important: compliance is project-specific. Final approval should always be checked against the vessel, flag, class society, owner specification, local code, and the exact material package selected for production.

6. Wear Zones to Detail Before Production

• Seat front edge and upholstery seams.
• Back top rail where chairs are pulled by hand.
• Rear leg corners and lower frame.
• Arm caps and outside arm panels.
• Glides and floor contact points.

7. Layout Planning

• Allow 600-700 mm of table width per guest.
• Allow 900-1100 mm behind occupied chairs in active service aisles.
• Check armchairs under the actual table, not only in plan view.
• Confirm stack height and storage route where stackability is required.

8. Common Specification Mistakes

• Approving chairs before the table base and apron are final.
• Using one glide type for every floor finish.
• Choosing a heavy chair for a layout staff must reset daily.
• Placing seams directly on high-rub front edges.
• Forgetting storage height for stackable chairs.

9. What to Send for a Precise Quotation

The better the input, the faster the specification can become a buildable offer. Include:

• Quantity and location.
• Chair type: side chair, armchair, upholstered, timber, metal, or stackable.
• Table height, table base type, and table overhang.
• Floor finish and glide requirement.
• Upholstery or finish references and cleaning method.
• Any compliance, documentation, or sample requirements.
